The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ's unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.

Open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
Accommodates roof pitches from 0:12 to 14:12
Slopes up or down to 45? (12:12) - for slopes greater than 45? up to 49? (14:12) allowable loads are 0.85 of table loads
For added versatility, the fasteners on the face of the hanger are placed high enabling the bottom of the rafter to hang below the ridge beam
For nominal rafter sizes: 2 in. x 6 in., 2 in. x 8 in., 2 in. x 10 in.
Seat width: 1-9/16 in.
Made from 18-Gauge steel
ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install with 0.148 in. x 3 in. nails, 0.162 in. x 3-1/2 in. nails or #10 x 1-1/2 in. or 2-1/2 in. strong-drive SD screws

Not only do angles make joints stronger, they also provide more consistent, straight corners. Simpson strong-tie offers a wide variety of angles in various sizes and thicknesses to handle light-duty jobs or projects where a structural connection is needed. Some can be bent (skewed) to match the project. For outdoor projects or those where moisture is present, use our zmax zinc-coated connectors, which provide extra resistance against corrosion (look for a "z" at the end of the model number). 3-3/8 in. Length install with 10D common nails or #9 x 1-1/2 in. Strong-drive sd screws.

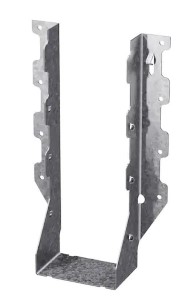

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LUS joist hangers provide a connection between a joist and header.

Patented double-shear nailing design provides greater strength with fewer nails
Speed prongs for fast and easy installation
Angled joist nailing easier in tight spaces
Do not bend or remove tabs
Nominal joist size: Double 2x10 and Double 2x12
Made from 18-Gauge steel
ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install with 16d common nails or #10 x 2-1/2 in. Strong-Drive SD screws

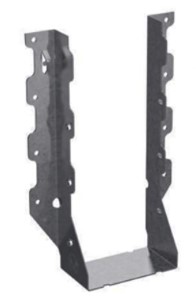

Simpson Strong Tie LUS310 3 x 10/12 Double Shear Joist Hangers have double-shear nailing. This innovation distributes the load through two points on each joist nail for greater strength. It also allows the use of fewer nails, faster installation, and the use of standard nails for all connections. LUS310 3 x 10/12 Hangers are approved for installation with 16D nails only.

2 X 3 MEDIUM L ANGLE ZMAX

2 inches x 4 inches, medium l angle, with zmax, combines strength & versatility through the use of simpson strong tie strong drive sds screws, fastener holes are staggered to minimize wood splitting & opposing hole patterns allows for back to back installation without fastener interference.

2 X 6 MEDIUM L ANGLE ZMAX

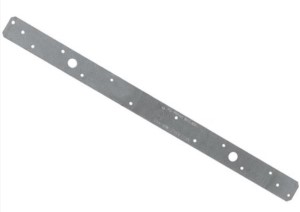

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. Available in many lengths, widths and thicknesses, straps can be used on the wide or narrow face of lumber for light repairs or heavy-duty projects. Many straps are designed to be used back-to-back on a piece of lumber without fastener interference.

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. The MTS provides a tension connection between two members. This economical twist strap resists moderate uplift loads at the rafter or heel of a truss. The MTS has a small bend section to reduce interference at the transition points between the two members.

The MTS provides a tension connection between two members. This economical twist strap resists moderate uplift loads at the rafter or heel of a truss. The MTS has a small bend section to reduce interference at the transition points between the two members.

The MTSM offers moderate-strength truss-to-masonry connections. This twist strap has a small bend section to reduce interference at the transition points between the two members. The MTSM is load rated for installation on both grout-filled CMU (GFCMU) and concrete.

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. Available in many lengths, widths and thicknesses, straps can be used on the wide or narrow face of lumber for light repairs or heavy-duty projects. Many straps are designed to be used back-to-back on a piece of lumber without fastener interference. The MTSM Twist Strap offers a high-strength truss to masonry connection.

Zmax, 18 gauge, 2x galvanized rigid tie connector.
